Secure Infrastructure

COBRA

Reliable software and hardware complex for trusted load of operating system
Client Satisfaction

0%

Project Completed

0

Integrated centralized management

Integration into the Crypto Code Studio management server creates economies in terms of the operation and status monitoring of a large number of Cobra products.

High level of trusted hardware security

Critical data stored in an independent memory module does not allow an attacker to bypass the protection system, even if software is compromised.

The most mature solution on the market

A solution leader in its class, Cobra has the highest level of reliability and the largest number of equipment tested for compatibility.

An integral part of cryptographic systems

Cobra is included in the list of mandatory equipment for the use of cryptographic information protection tools for class KC2 and higher.
Security
Encryption
Protection
Security
Encryption
Protection
Security
Encryption
Protection

Overview

sword

Protection of state information systems

object

Protection of critical information infrastructure facilities

cloud

Protection of information systems in credit and non-credit financial organizations

medical

Information security in healthcare organizations

Module

Model portfolio

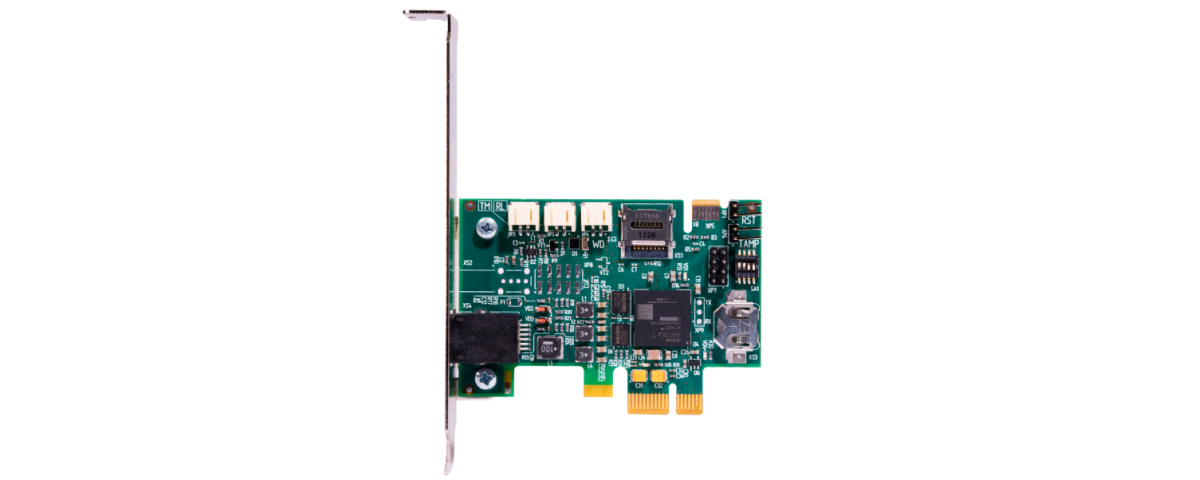

RS PCI Express

Size:57 х 80 mm
Interface:PCI Express
RJ12 external reader connector for an iButton device
Connector for iButton sensor internal reader
Connection cable for watchdog timer mechanism
Compatible personal identifiers:iButton DS1992, DS1993, DS1994, DS1995 and DS1996
iKey 2032 USB keys
eToken PRO USB keys
eToken PRO (Java) USB keys
eToken PRO USB cards via USB reader Athena ASEDrive IIIe USB V2
 S RF USB keys

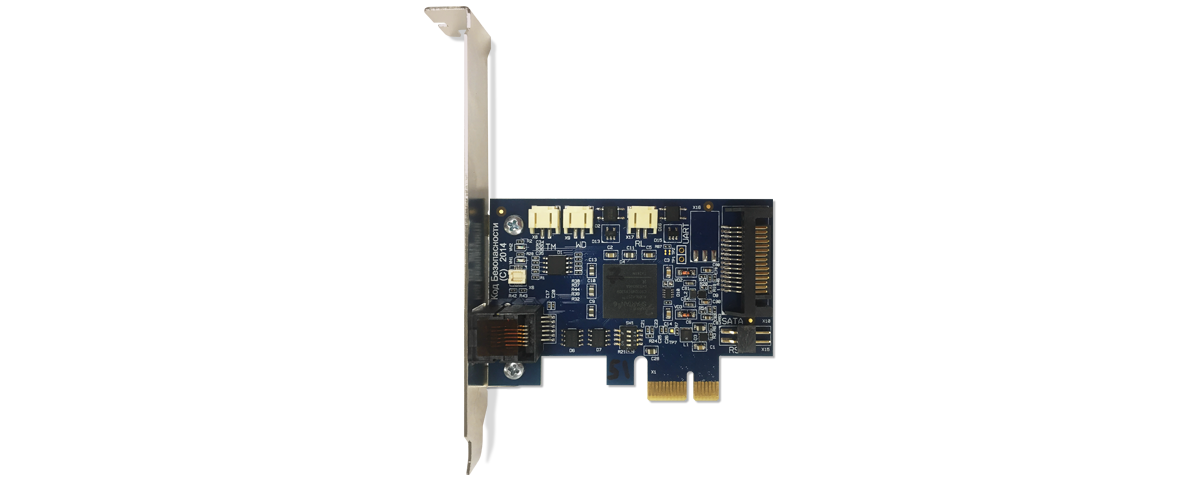

RS PCI Express (2022)

Size:57,5 х 80,7 mm
Interface:PCI Express
RJ12 external reader connector for an iButton device
Connector for iButton sensor internal reader
Compatible personal identifiers:iButton DS1992, DS1993, DS1994, DS1995, DS1996, SC Button 92
USB keys: eToken PRO, eToken PRO (Java), ESMART Token 64k,   Guardant-ID, Guardant-ID 2
Smart cards: Foros, eToken PRO, eToken PRO (Java)

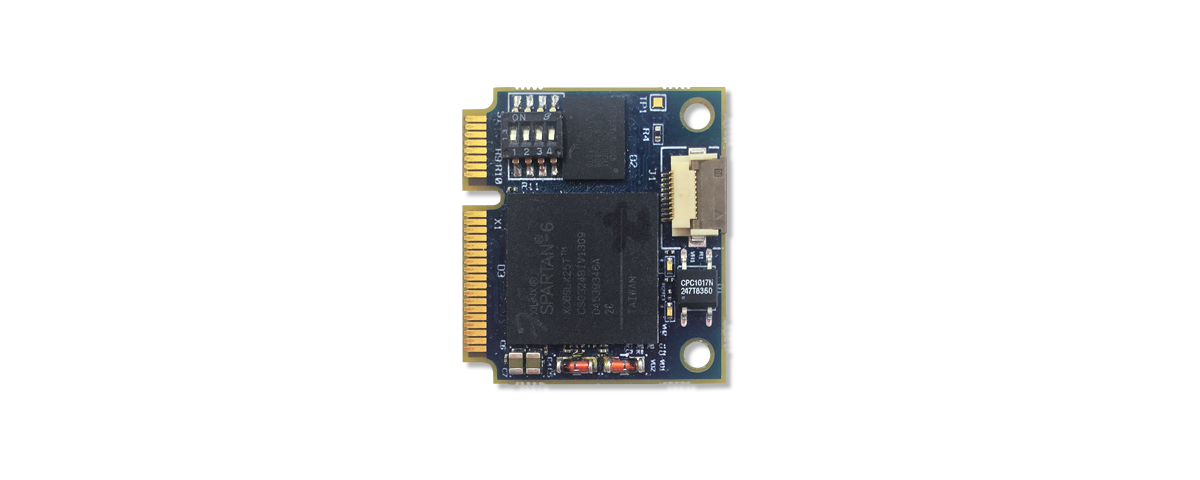

RS Mini PCI Express Half Size

Size:26 x 30 mm
Interface:Mini PCI Express
Connection of an internal or external reader for iButton Identifiers (via an extra adapter)
Compatible personal identifiers:iButton DS1992, DS1993, DS1994, DS1995 and DS1996
iKey 2032 USB keys
eToken PRO USB keys
eToken PRO (Java) USB keys
eToken PRO USB cards via USB reader Athena ASEDrive IIIe USB V2

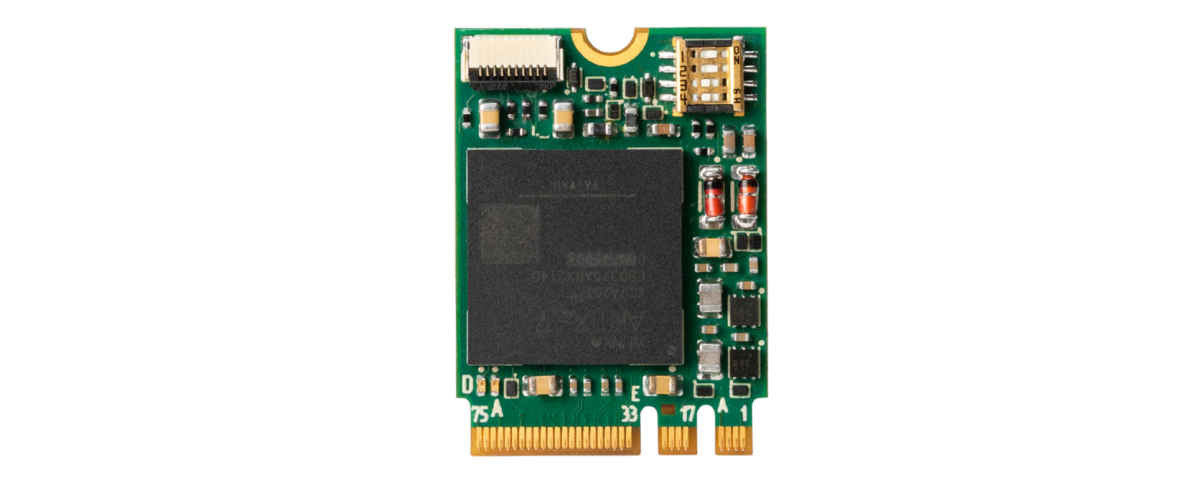

RS M.2 A-E

Size:30 x 22 mm
Interface:М.2 type 2230-D4-A-E
Connection of an internal or external reader for iButton Identifiers (via an extra adapter)
Compatible personal identifiers:

iButton DS1992, DS1993, DS1994, DS1995 and DS1996
iKey 2032 USB keys
eToken PRO USB keys
eToken PRO (Java) USB keys
eToken PRO USB cards via USB reader Athena ASEDrive IIIe USB V2

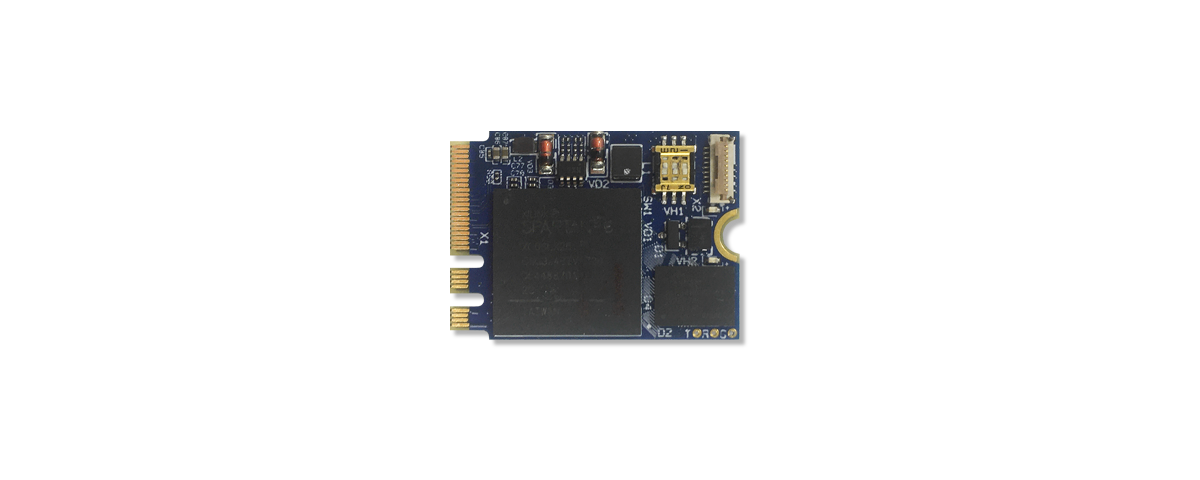

RS M.2 A-E (2022)

Size:22 х 30 mm
Interface:М.2 type 2230-D4-A-E
Connection of an internal or external reader for iButton Identifiers (via an extra adapter)
Compatible personal identifiers:iButton DS1992, DS1993, DS1994, DS1995, DS1996, SC Button 92
USB keys: eToken PRO, eToken PRO (Java), ESMART Token 64k, Guardant-ID, Guardant-ID 2
Smart cards: Foros, eToken PRO, eToken PRO (Java)


System requirements

To operate the Cobra software-hardware system, a safe environment without the typical vulnerabilities is required, including vulnerabilities about which information can be found in open source materials. A study of computer software and hardware (including a study of BIOS system software) must be run, in order to ensure the absence of hardware and software mechanisms which are incompatible with Cobra and would therefore lead to computer or Cobra system malfunction, or compromise the security of the data/information being protected. The volume and depth of the system’s research is determined by how secret (confidential) the information under protection is, the intruder model adopted, and the seriousness of the threat to confidentiality, as described in the corresponding requirements. The body of the workstation on which Cobra is installed must be protected from meddling and/or unauthorized access to its internal components.

Cobra 4.4

Operating system Guaranteed compatibility with Windows OS versions:

  • Windows 10 x64/x86
  • Windows 8.1 (with the update КВ2919355)
  • Windows Server 2008 R2 (SP1)
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019

Guaranteed compatibility with Linux OS versions:
  • ALT Linux 9.1
  • ALT Linux SP 8/8.1
  • Lotos 2.1
  • Red OS 7.2/7.3 Murom
  • Rosa 7.3 Cobalt
  • Astra Linux Special Edition 1.4/1.5/1.6/1.7
  • Astra Linux Common Edition 2.12.40 (42)
  • CentOS 7.3.1611/7.5.1804
  • CentOS 8/8.2 (2004)
  • Cryptonix OS 4.2
  • Debian 10.1/10.5
  • ESxi Version: 6.5.0
  • Oracle Linux 7.2/7.3
  • ROSA RED X4
  • SUSE Linux Enterprise 15
  • Ubuntu 18.04.2 LTS/18.04.5 LTS/20.04 LTS
File system FAT16, FAT32, NTFS, EXT2, EXT3, EXT4 RAM As per requirements of the OS Installed on the PC HD (free space) Minimum - 50 MB Optical drive CD/DVD-ROM
The requirement is not mandatory if a common access network resource with Cobor software is available System board Available system bus open slot:
  • PCI Express
  • Mini PCI Express
  • PCI Express M.2

Implementation of the watch dog timer mechanism at least 1 of the following requirements:
  • Available Reset connector
  • Available 20- or 24-pin ATX power jack
  • possible parallel connection to standard Power button cable cores

Cobra 3

Operating system Guaranteed compatibility with Windows OS versions:

  • Windows 10
  • Windows 8
  • Windows 7/7 x64 Edition
  • Windows Vista/Vista x64 Edition
  • Windows XP Professional/XP Professional x64 Edition
  • Windows Server 2012
  • Windows Server 2008/Server 2008 x64 Edition/Server 2008 R2
  • Windows Server 2003/Server 2003 x64 Edition/Server 2003 R2/Server 2003 R2 x64 Edition

Guaranteed compatibility with Linux OS versions:
  • MSVS 5.0
  • Alt Linux 7.0 Kentavr x64
  • Astra Linux Special Edition Smolensk 1.4 х64
  • Astra Linux 1.5
  • CentOS 6.5
  • ContinentOS 4.2 x64
  • Debian 7.6 x86/х64
  • Mandriva ROSA Nicel
  • Red Hat Enterprise Linux 7.0 x64
  • Ubuntu 14.04 LTS Desktop/Server
  • VMware vSphere ESXi 5.5 x64

Guaranteed compatibility with Unix OS:
  • FreeBSD 7.2/8.2/8.3
File system NTFS, FAT32, FAT16, UFS2, UFS, EXT4, EXT3, EXT2 RAM As per requirements of the OS Installed on the PC HD (free space) Minimum - 50 MB Optical drive CD/DVD-ROM
The requirement is not mandatory if a common access network resource with Sobol software is available System board Available system bus open slot:
  • PCI
  • PCI Express
  • Mini PCI Express

Implementation of the watch dog timer mechanism at least 1 of the following requirements:
  • Available Reset connector
  • Available 20- or 24-pin ATX power jack
