Key features of Cryptonix
- Centralized management and monitoring
- Application identification
- IDS/IPS and network antivirus
- Remote access and site-to-site VPN
- SSL inspection
- High availability and horizontal scaling
Cryptonix
Cryptonix
Cryptonix
Cryptonix
Network Security
One platform, five appliances
Cryptonix is a multifunctional next generation firewall (NGFW/UTM) with GOST algorithm support. The same firmware, the same management console and the same security policy run across the whole range — from the compact C10 for a branch office up to the C3000 for a data centre perimeter.
Model comparison
| Model | Form factor | Hard drive | Firewall (L4) | Network interfaces |
|---|---|---|---|---|
| Cryptonix C10 | Mini-ITX | SSD 64 GB | 3 000 mbit/s | 4x RJ45, 1x 1G SFP |
| Cryptonix C50 | Mini-ITX | SSD 64 GB | 3 700 mbit/s | 4x RJ45, 1x 1G SFP |
| Cryptonix C550 | Mini-ITX | SSD 256 GB | 19 000 mbit/s | 4x RJ45, 2x Combo, 2x 10G SFP+ |
| Cryptonix C800 | 1U | SSD 240 GB | 37 000 mbit/s | 8x RJ45, 4x 10G SFP+ |
| Cryptonix C3000 | 1U | SSD 960 GB | 66 000 mbit/s | 8x RJ45, 8x 10G SFP+ |
Specifications
Choose a model
C10

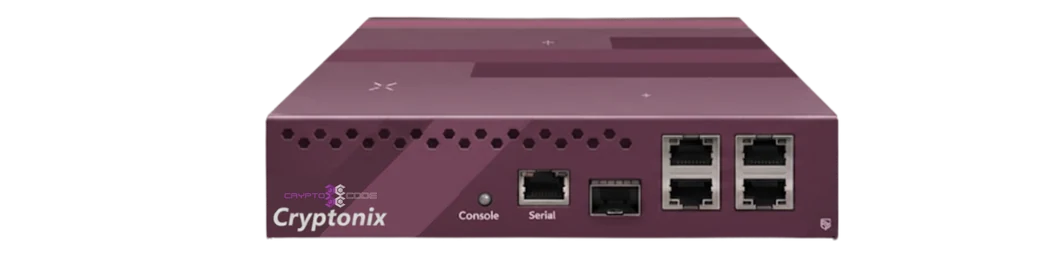

Cryptonix C10
- Form factor: Mini-ITX
- Hard drive: SSD 64 GB
- Network interfaces: 4x 10/100/1000BASE-T RJ45, 1x 1G SFP
- USB ports: 2x USB 2.0
- Firewall (L4) 1: 3 000 mbit/s
- Firewall (L7) 2: 1 000 mbit/s
- NGFW2,3: 630 mbit/s
- Threat Protection2,4: 500 mbit/s
- L2 IPS1: 150 mbit/s
- VPN5: 300 mbit/s
Operating conditions
| Power supply | 1 x 300 W with hot-swap, ~100-240 V, 1.5 A, 50-60 Hz |
|---|---|
| Temperatures | From 0°C to 40°C |
| Humidity | From 5% to 85% |
| Permissible atmospheric pressure | From 84 to 107 kPa |
| Mean time between failures | 50 000 hours |
| Measurements (mm) | 140 x 180 x 45 |
| Weight (kg) | 1 |
C50
Cryptonix C50
- Form factor: Mini-ITX
- Hard drive: SSD 64 GB
- Network interfaces: 4x 10/100/1000BASE-T RJ45, 1x 1G SFP
- USB ports: 2x USB 2.0
- Firewall (L4) 1: 3 700 mbit/s
- Firewall (L7) 2: 1 500 mbit/s
- NGFW2,3: 1000 mbit/s
- Threat Protection2,4: 800 mbit/s
- L2 IPS1: 900 mbit/s
- VPN5: 350 mbit/s
Operating conditions
| Power supply | 1 x 300 W with hot-swap, ~100-240 V, 1.5 A, 50-60 Hz |
|---|---|
| Temperatures | From 0°C to 40°C |
| Humidity | From 5% to 85% |
| Permissible atmospheric pressure | From 84 to 107 kPa |
| Mean time between failures | 50 000 hours |
| Measurements (mm) | 140 x 180 x 45 |
| Weight (kg) | 1 |
C550

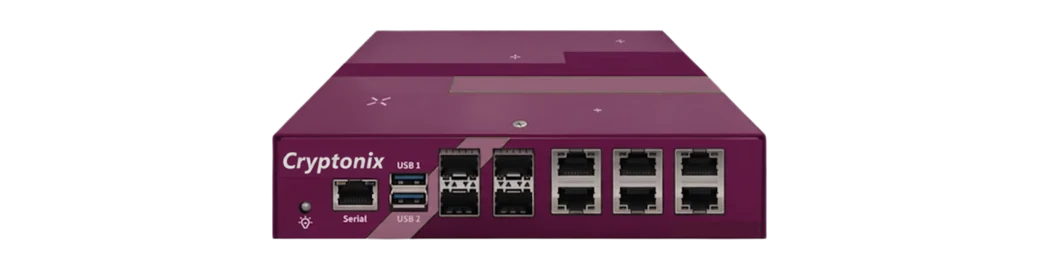

Cryptonix C550
- Form factor: Mini-ITX
- Hard drive: SSD 256 GB
- Network interfaces: 4x 10/100/1000BASE-T RJ45, 2x Combo 1G RJ45/SFP, 2x 10G SFP+
- USB ports: 2x USB 2.0, 2x USB 3.0
- Firewall (L4): 19 000 mbit/s
- Firewall (L7): 5 300 mbit/s
- NGFW: 2300 mbit/s
- Threat Protection2,4: 1800 mbit/s
- L2 IPS: 2200 mbit/s
- VPN: 1000 mbit/s
Operating conditions
| Power supply | 1 x 300 W with hot-swap, ~100-240 V, 1.5 A, 50-60 Hz |
|---|---|
| Temperatures | From 0°C to 40°C |
| Humidity | From 5% to 85% |
| Permissible atmospheric pressure | From 84 to 107 kPa |
| Mean time between failures | 50 000 hours |
| Measurements (mm) | 175 x 217 x 45 |
| Weight (kg) | 1 |
C800
Cryptonix C800
- Form factor: 1U
- Hard drive: SSD 240 GB
- Network interfaces: 8x 1000BASE-T RJ45,
4x 10G SFP+ - USB ports: 2x USB 2.0,
2x USB 3.0
- Firewall (L4) 1: 37 000 mbit/s
- Firewall (L7) 2: 13 000 mbit/s
- NGFW: 4500 mbit/s
- Threat Protection: 3800 mbit/s
- L2 IPS: 5000 mbit/s
- VPN: 5000 mbit/s
Operating conditions
| Power supply | 1 x ~100–240 V, 3.5 A, 47–63 Hz |
|---|---|
| Temperatures | From 5°C to 45°C |
| Humidity | From 5% to 85% |
| Permissible atmospheric pressure | From 84 to 107 kPa |
| Mean time between failures | 50 000 hours |
| Measurements (mm) | 500 x 430 x 44 |
| Weight (kg) | 8.5 |
C3000

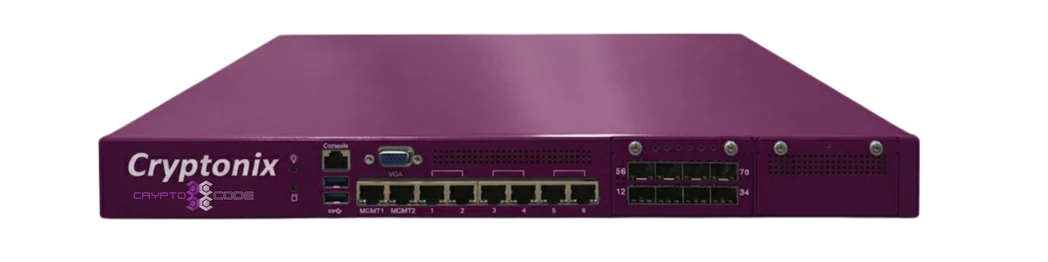

Cryptonix C3000
- Form factor: 1U
- Hard drive: SSD 960 GB
- Network interfaces: 8x 1000BASE-T RJ45, 8x 10G SFP+
- USB ports: 2x USB 2.0, 2x USB 3.0
- Firewall (L4) 1: 66 000 mbit/s
- Firewall (L7) 2: 28 000 mbit/s
- NGFW2,3: 8000 mbit/s
- Threat Protection2,4: 5600 mbit/s
- L2 IPS1: 1000 mbit/s
- VPN5: 9000 mbit/s
Operating conditions
| Power supply | 2 x 300 W with hot-swap, ~100-240 V, 3-5 A, 50-60 Hz |
|---|---|
| Temperatures | From 5°C to 45°C |
| Humidity | From 5% to 85% |
| Permissible atmospheric pressure | From 84 to 107 kPa |
| Mean time between failures | 50 000 hours |
| Measurements (mm) | 500 x 430 x 44 |
| Weight (kg) | 8.5 |
Stable operation
- End-to-end quality control from development up to production
- Multi-level and mature technical support, in-house SOC and signature development center
- High availability for platforms and network channels
Automated migration from foreign NGFW
- Check Point
- FortiGate
- Cisco
VPN encryption
- Full Mesh topology network support
- Construction of Full-Mesh networks and networks according to the “Star” topology
- Secure remote access with monitoring of connectivity (Zero Trust Networking)
Protection of external network perimeter
Internal network
Protection of datacenter infrastructure
